Our Rigs

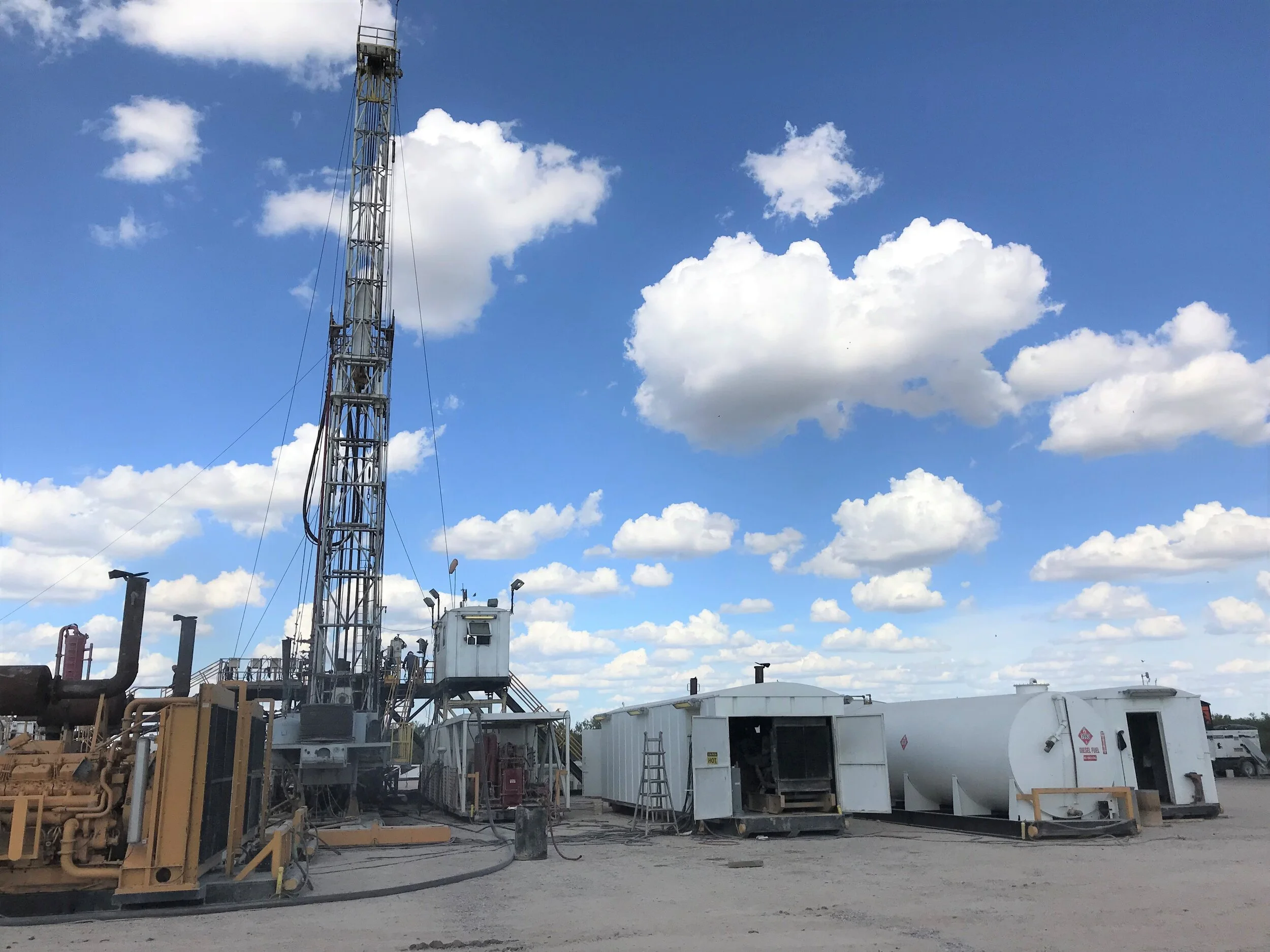

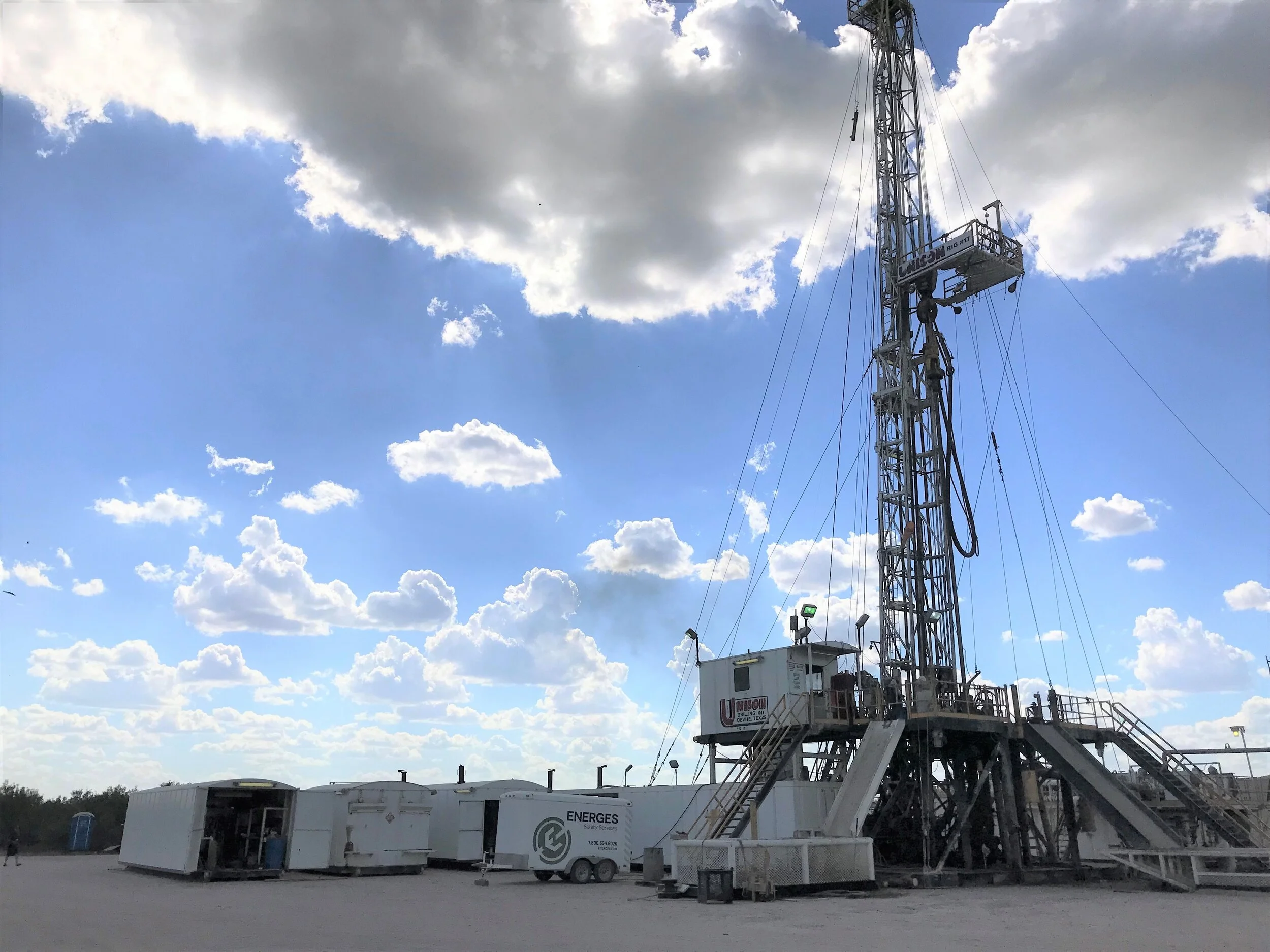

Rig #4 Specs

Depth Capacity – 4,700’

DRAWWORKS

Spencer–Harris 3500, trailer mounted, Baker N–4 S/D Drawworks powered by CAT 3406T diesel engine (475HP) coupled to a torque converter. Foster hydraulic makeup & breakout catheads, belt driven hydraulic pump and Quincy 375 air compressor.

MAST

Spencer–Harris 96’ hydraulic raised & cable scoped 4 – leg mast, 150,000# hook load 5 crown sheaves, grooved for 1" drill line, racking board, 4" stand pipe.

SUBSTRUCTURE

Rig floor is 7’ high X 14’ wide with stairs & V–Door. 1–piece mud boat is 12"high x 37’ long x 12’ wide. Pony sub is 30" high.

MUD PUMPS

#1 EW 15W600 Duplex pump, belt driven, powered w/ Cat D-353 diesel engine.

#2 EW 15W600 Duplex pump, belt driven, powered w/ Cat D-353 diesel engine.

MUD SYSTEM

Earth pit system w/ 2 – 12" cone desander w/ 5 X 6 centrifugal pump powered by Cat 3304T diesel engine, mud mixing hopper, all mounted on 8’ X 12’ master skid.

ROTATING EQUIPMENT

18" Skytop Brewster, 44" centers and split master bushing.

UTILITY/HOUSE GENERATORS

Main Generator ? Cat 210 KW, 220 3 phase generator set powered by Cat 3306T diesel engine.

Standby Generators- Cat 100 KW, 220 3 phase generator set powered by Cat 3304T diesel engine.

Quincy 375 air compressor with10 HP electric motor.

All the above mounted inside 8’ wide X 13’ long utility house, electric control panel with wiring, lights mounted on 1981 Hobbs 40’ long trailer, along with a 2000 gallon fuel tank.

WATER TANK AND TOP DOG HOUSE COMB

300 barrel open top water storage tank, 7’8" W X 26’ L dog house scopes down inside of water tank.

B.O.P. EQUIPMENT

8" 3M Regan annular.

DRILL STRING

150 Jts. 4" FH 14.40# Grade E, 4 ¼" X 40’ long square Kelly w/ shuck.

TRAVELING EQUIPMENT

McKissick 75 ton traveling block unitized w/ BJ 75 Ton Hydra Hook, TL 120 ton swivel.

MISCELLANEOUS RELATED EQUIPMENT

Mathey Hydraulic wire line w/ 15 HP Electric Motor. 1 - 8’ X 30’ junk box setup w/4 station closing unit.

Rig #7 Specifications

Depth Capacity – 13,500’

DRAWORKS

Stewart & Stewart Model CE750SD, Mechanical, grooved for 1 1/8" Drill line, Wichita Model 236 Assist Brake powered by 2 Cat C15 diesel engines with Cat Model TH35-E81 Transmission rated at 540 HP each.

MAST

Stewart & Stewart 118; 400,000# static hook load telescoping hydraulically raised scoped mounted on a 4 axle trailer.

SUBSTRUCTURE

Cabot 900 17’ high floor, 350,000# capacity with 200,000# set back capacity, 12’ 9" clear height from rotary beam to ground level.

MUD PUMPS

#1 RSF - 1000 Triplex pump, chain driven, powered w/Cat D-399 diesel engine.

#2 RSF - 1000 Triplex pump, chain driven, powered w/Cat D-399 diesel engine.

ROTARY

Gardner Denver 17 1/2"

CROWN BLOCK

Crown six (6) sheave TRAVELING BLOCK and HOOK McKissick 250 ton block w/ McKissick hydra hook

SWIVEL

National P200 - 200 Ton

KELLY

5 1/4" Hex Kelly w/ NC46 (4 1/2" X H) Pin

ANNULAR PREVENTORS

Hydril GK 11" x 5000psi WP

RAM PREVENTORS

Shaffer Double Ram 11" x 5000psi WP Flange x Flange Pipe Rams 4 1/2", CSO (blind) rams

CHOKE MANIFOLD

Cameron 4 1/16" x 2 1/16" 5000psi WP dual choker

ACCUMULATOR SYSTEM

USA Air Tool Style 2000 BOP control system, 132 gallon capacity with (2) air pumps and (1) electric pump

MUD TANK SYSTEM

Three (3) Tank 800 BBL total One (1) Brandt LM-4 Dual Shaker 0-Drill 12 cone Desilter 0-Drill 2 cone Desander Brandt Degasser

MUD MIXING PUMPS

3- 5" x 6" centrifugal pumps driven by 50HP electric motors

AUXILIARY EQUIPMENT

Pipe Racks - 3 sets - 18" high, 4 sets - 42" high Toolpusher and Crew Quarters Automatic Driller - Operator provided (Pason) Two (2) Hydraulic Hoists 30" x 15’ High Gas Buster Five Star Hydraulic Wireline Unit w/ 15,000 of wire powered by 7.5HP electric motor Foster Air Kelly Spinner

POWER SYSTEM

(2) Cat C-15 Diesel Engines w/ 365 KW Cat Generators w/ Air Compressor and (2)- 112 KVA Step Down Transformers

FUEL TANK

12,000 gal w/ 2 fuel pumps WATER TANK & TOP DOG HOUSE COMBO (1) 453 BBLs Water Tank w/ pop up Dog House

Rig #5 Specifications

IRI Franks Mobil Rig 750

Depth Capacity – 9,000’

DRAWWORKS

IRI model 2042 drawworks grooved for 1 1/8" drill line, Parmac SR–22 hydromatic brake Powered by 2 CAT 3406 diesel engines with an Allison HT–750 transmission rated at 750 HP. Dual hydraulic catheads, hydraulic pump, air clutches & Bendix Tru–Flow compressor.

MAST

IRI Franks 112’, 300,000# SHL. Telescoping mast, hydraulically raised and scoped with dual rams, mounted on Franks 6 axle carrier. Substructure Franks 40’ long x 12’ wide x 15’ high (12’ clearance below the rotary table), 350,000# casing capacity and 200,000# setback capacity, equipped with V–door and stairs.

MUD PUMPS

#1 RSF - 1000 Triplex pump, chain driven, powered w/Cat D-399 diesel engine.

#2 RSF - 1000 Triplex pump, chain driven, powered w/Cat D-399 diesel engine.

MUD SYSTEMS 2 steel tank mud system – 430 barrels total working volume, National Oilwell 2–cone desander, National Oilwell 12–cone desilter, National Oilwell dual screen shale shaker National Oilwell caustic/chemical mixing barrel, National Oilwell high volume mud hopper, 4 – 6x5 centrifugal pumps powered by 40 HP electrical motors. 80 bbl Trip Tank.

GENERATOR HOUSE

2 CAT SCR4 350 KW AC generators, powered by CAT 3306 diesel engines. With parts Room.

FUEL TANK

Skid mounted 8000 gallon with transfer pumps. Water Tank – Top Doghouse 500 barrel storage tank with pop up dog house, Satellite Automatic Drilling Control system & 1 pen Eastman/Star drilling recorder.

BLOWOUT PREVENTERS

11" x 5,000# Shaffer LWS with 4 ½" pipe and blind rams, 11" x 5,000# GK Hydril annular, 8 bottle, 5 station M–series accumulator with remote on floor, 5,000# choke manifold.

ROTATING EQUIPMENT

Gardner Denver 175 17 ½" rotary with 44" centers and split master bushings, 40’ square Kelly with Varco drive bushings.

TRAVELING EQUIPMENT

Skytop Brewster HB15 – 150 ton block and hook, 8 sheave grooved for 1 1/8" drill line National P200 swivel equipped with Foster kelly spinner.

DRILL STRING 300 jts. 4 ½" XH, 16#, Grade E.

MISCELLANEOUS RELATED EQUIPMENT

Mathey Hydraulic wire line with 15 HP electric motor and .092 wire line. 4 pipe boxes. 3 sets of pipe racks. 45' Long Cat Walk/Collar Basket. Gas Buster.

Rig #11 Specifications

Depth Capacity – 9,500’

DRAWWORKS

Cabot 750 model 2042 drawworks grooved for 1-1/8" drill line, Parmac SR-22 hydromatic brake Powered by 2 CAT 3406 diesel engines with an Allison HT-750 transmission rated at 750 HP, dual hydraulic catheads, hydraulic pump, air clutches, Bendix Tru-Flow compressor.

MAST

Cabot 112', 300,000# SHL telescoping mast, hydraulically raised and scoped with dual rams, mounted on Franks 6 axle carrier.

SUBSTRUCTURE

Cabot 40' long x 12' wide x 15' high (12' clearance below the rotary table), 350,000# casing capacity and 200,000# setback capacity, equipped with V-door and stairs.

MUD PUMPS

2 RSF - 1000 Triplex pumps, chain driven, powered w/Cat D-399 diesel engines.

MUD SYSTEM

2 steel tank mud system with 700 barrels of total working volume. Brandt King Cobra Dual shale shakers. NOV 2-cone desander, NOV 12-cone desilter, NOV caustic/chemical mixing barrel. NOV high volume mud hopper, 4 - 6x5 centrifugal pumps powered by 40 HP electrical motors. 60 bbl Trip Tank.

GENERATOR HOUSE

2 CAT 350 KW AC generators, powered by CAT C-15 diesel engines. With parts room.

FUEL TANK

Skid mounted 8000 gallon with transfer pumps.

WATER TANK - TOP DOGHOUSE

500 barrel storage tank with pop up dog house, Satellite Automatic Drilling Control system, 1 pen Eastman/Star drilling recorder, 6º Eastman down hole survey tool.

BLOWOUT PREVENTERS

11" x 5,000# Shaffer LWS with 4 1/4 pipe and blind rams, 11" x 5,000# GK Hydril annular, 8 bottle, 5 station M-series accumulator with remote on floor, 5,000# choke manifold.

ROTATING EQUIPMENT

Gardner Denver 175 17 1/2" rotary with 44" centers and split master bushings, 40' square Kelly with Varco drive bushings.

TRAVELING EQUIPMENT

Skytop Brewster HB15-150 ton block and hook, 8 sheave grooved for 1 1/8" drill line. National P200 swivel equipped with Foster kelly spinner.

DRILL STRING

300 jts. 4 1/2" XH, 16#, Grade E, Range 2 drill pipe, 16-6 1/4" spiral cut drill collars.

MISCELLANEOUS RELATED EQUIPMENT

Mathey Hydraulic wire line with 15 HP electric motor and .092 wire line. 4 pipe boxes. 3 sets of pipe racks. 45' Long Cat Walk/Collar Basket. Gas Buster.

MUD PUMP SPECIFICATIONS

RSF-1000 Performance specifications
 Liner Diameter:
6-3/4"    6-1/2"    6-1/4"    6"    5-1/2"    5"    4-1/2"
 Discharge pressure: (PSI)
2378    2552    2770    3002    3567    4322    5003
 SPM
 140 GPM:    650    602    558    513    431    356    288
 130         603    559    518    477    400    331    268
 120         557    516    441    440    369    305    247
 110         510    473    438    403    339    280    226
 100         464    430    398    367    308    255    206
 Gear Ratio is 4.207:1

Rig #17 Specifications

DRAWWORKS

S/N 1033001

Cabot 750 HP, Double Drum Drawworks Lebus grooved for 1 1/8" drill line and Powered by 2- CAT 3406B diesel engines with Allison HT-750 transmissions. R&H; 22" Double Hydromatic brake and Crown-O-Matic.

MAST

Cabot Model 112-300 S/N 103001 Cabot 112' Telescoping Double Mast rated at 300,000# Static Hook Load. Hydraulically raised, 7 sheave crown block, Crown safety platform, Ladder & Guylines. All above mounted on a Franks 4 axle trailer.

SUBSTRUCTURE

Franks 40' long x 12' wide x 15' high (12' clearance below the rotary table), 350,000# rotary capacity and 200,000# setback capacity, equipped with V-door and stairs.

ROTARY TABLE

17 1/2" Rotary Table with Split Master Bushing.

MUD PUMPS

#1 Gardner Denver style MZ-9 triplex pump rated @ 1000HP, belt driven by Cat 398.

#2 Gardner Denver style MZ-9 triplex pump rated @ 1000HP, belt driven by Cat 398.

MUD SYSTEM

2 steel tank mud system with 625 barrels total working volume. Suction Tank Skid 10' Wide x 6' High x 45' Long (including 12' Long Porch extension) Slug Tank = 75 BBLS, Suction Tank (2 compartments) = 230 BBLS. (3) Compartments with Flat bottom, internal plumbing and top mounted walkways & handrails. (2) 5" x 6" Centrifugal mixing pumps with 50 HP electric Motors. (3) FSI 10 HP Low Profile Mud Agitators.

Shaker Tank Skid 10' Wide x 6' High x 45' Long (including 11' Long Porch extension) Solids control tank (3 compartments) = 240 BBLS, Sand Trap = 80 BBLS. New Brandt 12 cone Desilter and New Brandt 2 cone Desander. (3) Compartments with Flat bottom, internal plumbing and top mounted walkways & handrails. (2) 5" x 6" Centrifugal pumps. (2) FSI 10 HP Low Profile Mud Agitators. Re-conditioned Fluid System's FSI Series 5000 High G Force Linear Dual Shakers.

GENERATOR HOUSE

(2) Detroit 350 KW AC Generators Powered by Detroit Series 60 Diesel Engines w/ Electric Start. (1) 75 KVA Transformer. (2) Air Compressors - Quincy M/N QR390 Powered by 20HP Baldor Electric Motors. All above mounted in 10'W X 40'L Skidded House.

FUEL TANK

12,000 Gal. Skid mounted fuel tank with 4 compartment Lubister and 8'W X 12'L Pump House.

WATER TANK - DOG HOUSE

425 barrel water storage tank 10'W X 8'H X 30'L with pop up dog house and 20' covered porch. (2) Double Life 3" X 4" Centrifugal water pumps powered by 30 HP electric motors.

DOG HOUSE

8'W X 20'L Dog House w/(3) Lockers, Knowledge Box & Bench Storage. Change / Parts House: 10'W X 40'L Skid w/ 17'L Change House with 20 Lockers & 20'L Parts House with Shelving.

ACCUMULATOR

5 Station Accumulator with 295 gal tank and (12) 11 gal accumulator bottles mounted on water tank skid and 5 station Remote mounted on porch on outside of doghouse.

BLOWOUT PREVENTERS

11" x 5,000# Cameron with 4 1/2" pipe and blind rams, 11" x 5,000# GK Hydril annular, 5,000# choke manifold.

TRAVELING EQUIPMENT

Block: Emsco YG 135, 150 ton Block and Wilson 150 Hook, 8 sheave grooved for 1 1/8" drill line. Swivel: SLT 170, 180 Ton swivel equipped with Oil Works M/N OWI 1500 kelly spinner. Elevator Bails: 2 1/4" X 9'L 250 Ton.

KELLY

4 1/2" X 38' Hex Kelly.

DRILL STRING

270 jts. 4 1/2" XH, 16#, Grade E, Range 2 drill pipe, 16 - 6 1/4" spiral cut drill collars.

INSTRUMENTATION

Atlas Type FS 300,000lb Weight Indicator, Pump Pressure Gauge, (2) Tong line pull gauges & Rotary Torque Gauge. Atlas Automatic Driller.

MISCELLANEOUS RELATED EQUIPMENT

Five Star Wireline Retriever with 15 HP electric motor and .092 wire line. 4 pipe boxes. 3 sets of pipe racks. 45' Long Cat Walk/Collar Basket. Gas Buster.

MUD PUMP SPECIFICAITONS

MZ-9 Performance specifications
 Liner Size:
6-1/2"    6-1/4"    6"    5-1/2"    5"    4-1/2"    4"
 Discharge PSI:
3060    3310    3592    4274    5000    5000    5000
 Gal/Rev:
3.88    3.59    3.3    2.78    2.29    1.86    1.47
 GPM:    GPM:    GPM:    GPM:    GPM:    GPM:    GPM:
 130    504    466    429    361    297    241    191
 120    465    430    396    333    274    223    176
 110    426    394    363    305    251    204    161
 100    388    359    330    278    229    186    147
 90    349    323    297    250    206    167    132
 80    310    287    264    222    183    148    117

 Max. Input:1000 hp
 Max. Speed:130 SPM
 Gear Ratio:4.48:1
